Multi-functional coaxial cable network cable line wire strippers.

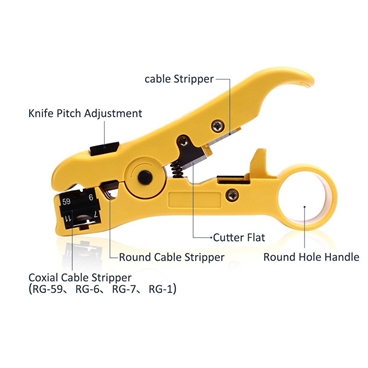

Coaxial cable stripper, round cable stripper, cutter and flat cable stripper meet your needs.
If you get the concept of cutting cable you need a tool like this.
Solid must have for tool box.
How to use it:

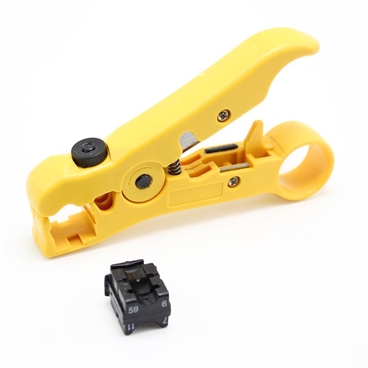

1.Push the cassette out of the housing,push from the front of the cassette
2.Cassette is reverslible,one is available for RG-59/6 and other side is for RG-7/11.
3.For stripping coaxial cable:
a.Insert the cable until it aligns with the cable guide

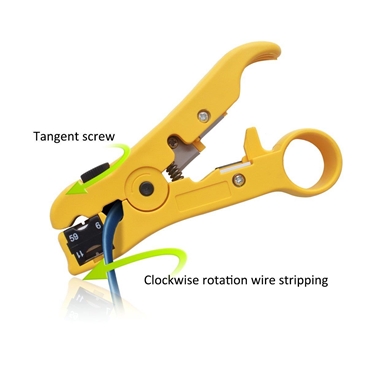

b.Insert your index finger into the stripper's finger ring,rotate the stripper by counter clockwise 3-5times
c.Open the jaws and remove the cable.pull away the outer jacket and dielectric to expose the inner conductor.
d.Stripping distance is designed for 6mm,for each dielectric and inner conduct.

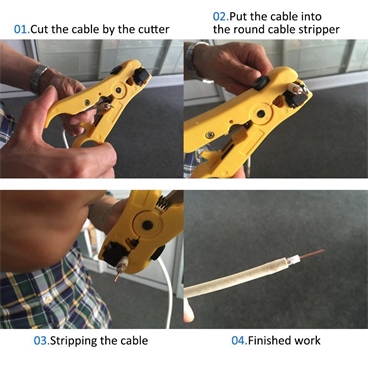

4.For stripping round networking cable:
a.Insert
the cable into the second stripping hole,rotate 1-3times at counter
clockwise,and then open the jaw and remove the outer jacket.
b.The

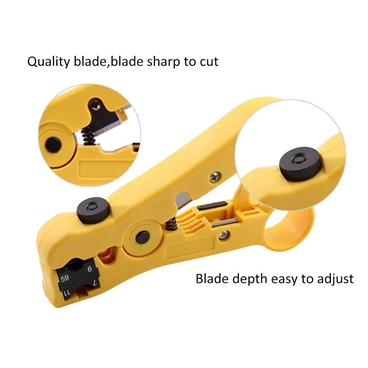

black color adjusting knob is for adjusting the blade's depath.turn
clockwise for increaseing the blale's depth and counter clockwise for
reducing the depth.
5.For cutting coaxial cable round networking cable,place the cable in position and then aqueeze the handles.
6.For stripping flat cable,insert the cable between the stripper
blades, Squeze handles,cable must be kept perpendicular and then pull
from the tool.
Specification:
Color: Yellow
Shipping weight: 85g/3 OZ
material: ABS
Blade material: SK-5

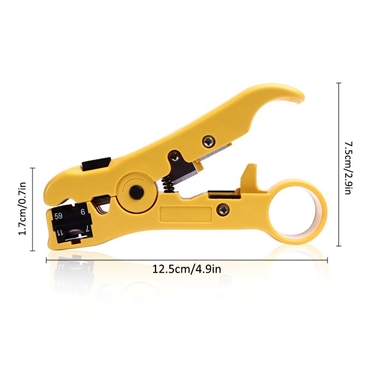

Size: 12.5*7.5*1.7cm/4.9*3*0.7in
| Package | Q/TY/CTN | G.W. | SIZE |
| Blister Card | 100pcs | 10KG | 54.5*31*31CM |
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 62.00
Std. Packing Qty. (pcs): 1
