Specification:

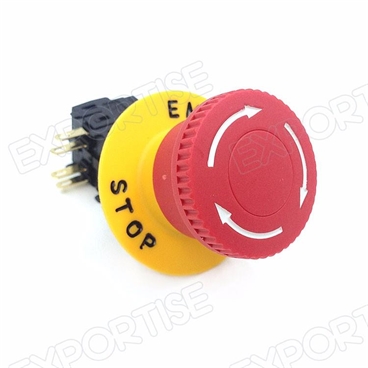

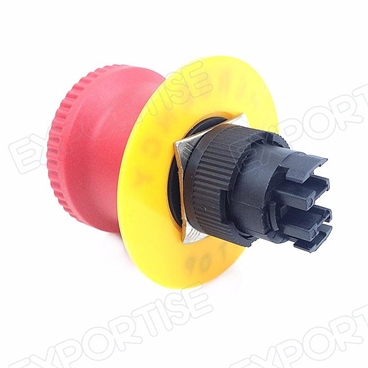

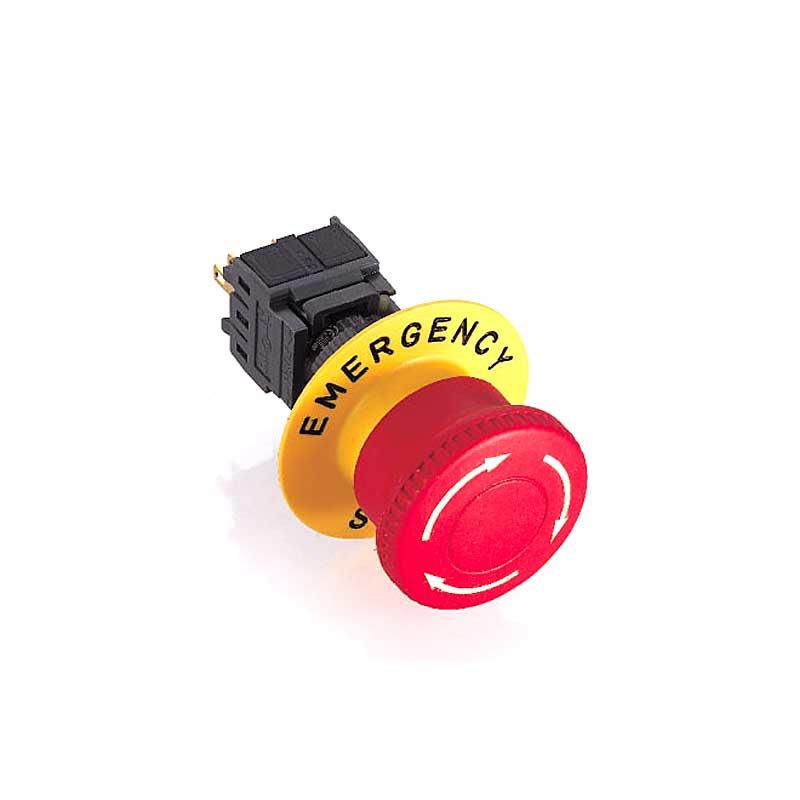

Operation Style: E-stop button
Operation Characteristic: Round With LED
Technical parameters:
1. Degree of Protection:IP65 Watertight/Oiltight

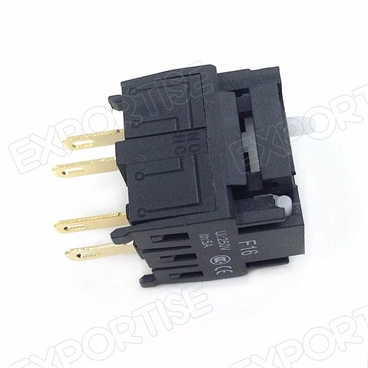

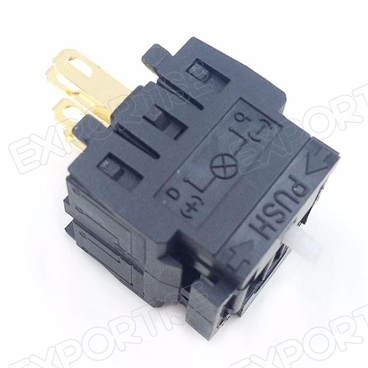

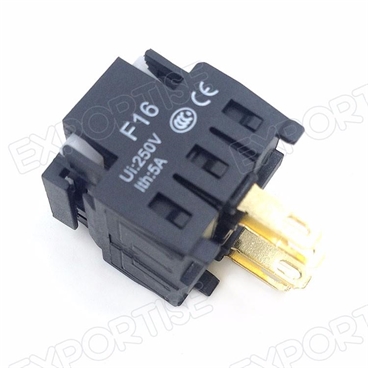

2. Contact Configuration: SPDT/DPD/TPDT
3. Maximum Voltage:220VAC/DC
4. Thermal Current:5A
5. Minimum Applicable Load: 5VAC/DC,1mA
6 .Contact material: Gold-plated silver
7. Terminal Style:110 Solder / Quick Connect
8. Operatiing Temperature: -25 ℃to +55℃
9. Operational humidity: 45% to 85% RH
10. Contact resistance:50mΩ maximum
11. Insulation Resistance:100 mΩ minimum (500VDC megger)
12. Degree of Protection:>10g
13. Electrical Life:100,000 operations minimum(at full rated load)

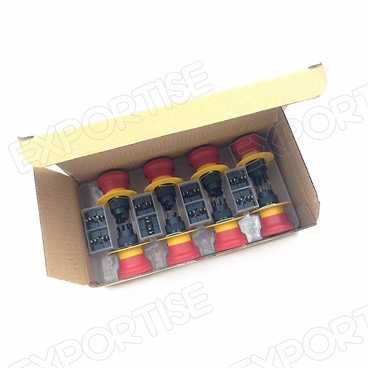

Packaging: 8pcs/box, weight: 263gs
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 22.00
Std. Packing Qty. (pcs): 8
