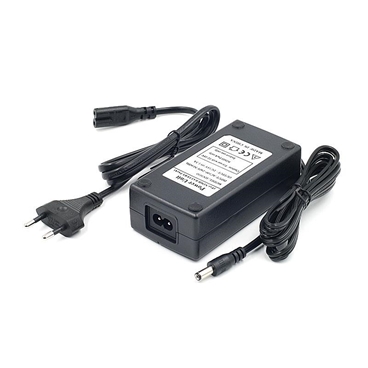

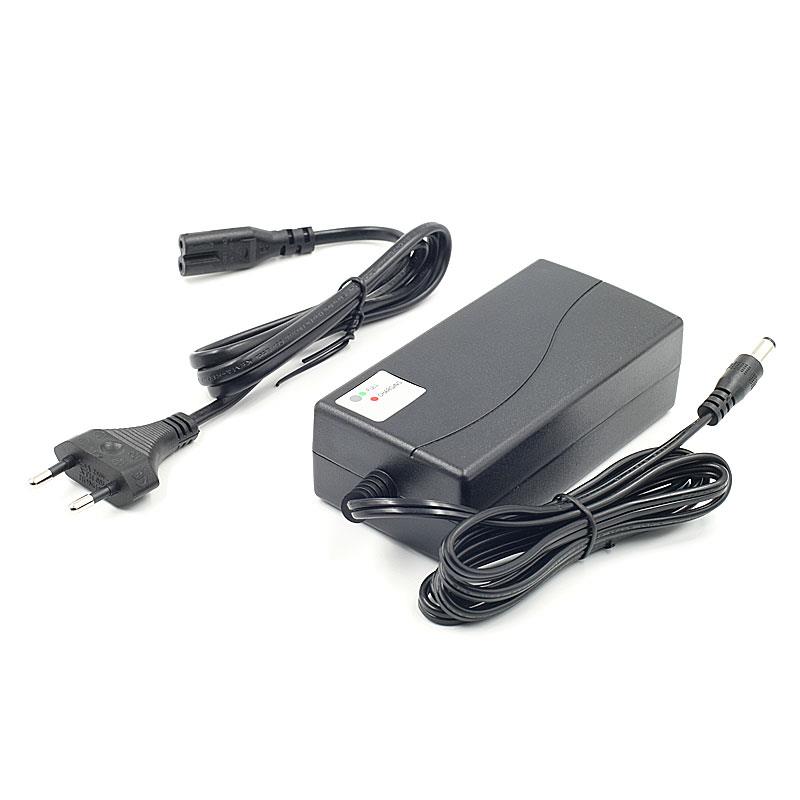

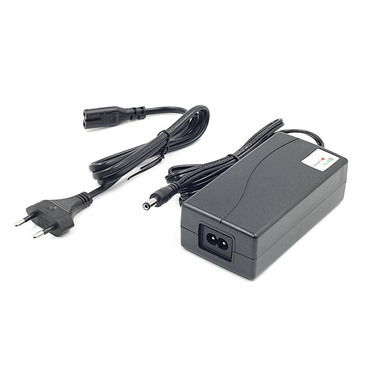

Smart Charger with automatic voltage detection. Best for charging all RC Car, RC air and Airsoft battery packs 12V-18V
Deliver full charge within 2 - 3 hours.
Worldwide usage with 120-240V AC.
Use pulse and negative pulse technology to avoid battery overheating during fast charging, optimized for battery pack's cycle life.
Safety protection fuse for over current, short circuit & reverse polarity protection
Rated Input: 100-240VAC 50/60Hz
Input Range: 90-264VAC
Rated Input Current: 0.4Arms
Max Input Power: 40W
AC Cord: European 2-pin to C7 Power Cord
Rated Output Voltage: 24VDC
Output Voltage Range: 10-30VDC
Compatible with Battery: 12-18V 1.2-12Ah NiMH / NiCD
Charge Current: 1.3A +/-0.2A
Trickle Current: <0.1A
Ripple Current: 90mA
Max. Output Power: 30W
Main Charge End Condition: -DV>5mV/Cell (Typ.); or VMAX >-24V or Timer Out
LED Idication: RED main charging; GREEN finished charging
Protection: short-circuit enable by default; output reverse on request.
Efficiency: average. 75%
DC Connector: 5.5/2.1mm
Operating Temp.: -10-40°C
Cooling: natural convection
Net Weight: 290g/pc (inc. AC cord)
Housing Size: 117x61x37mm
Safety Standard: CE EN60950
CE Reports
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 290.00
Std. Packing Qty. (pcs): 100
