Mechanical Specifications:

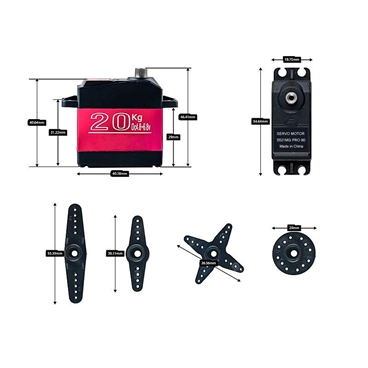

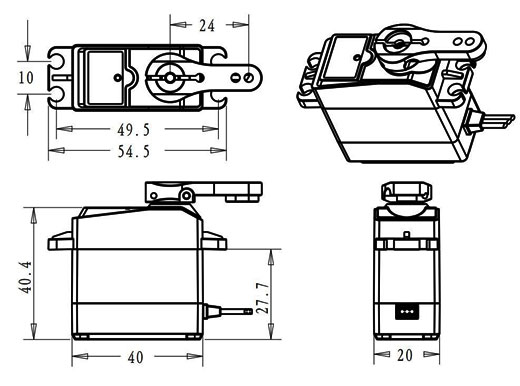

Outer size: 55 x 19 x 47mm (max) / body size: 40 x 20 x 40.5mm
Waterproof: IP66
Limit angle: 360 Degrees
Bearing: 2BB
Horn gear spline: 25T Diameter: 6mm
Case: CNC Aluminum
Connector wire: 320mm±5mm
Motor: Carbon brush motor
Working conditions:
Working voltage range: 4.8V - 6.8V
Storage Temperature: -30~80°C
Operating Temperature: -25~75°C

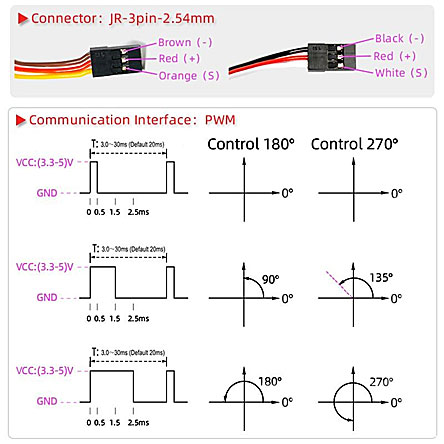

Signal: PWM
Amplifier: Full Digital

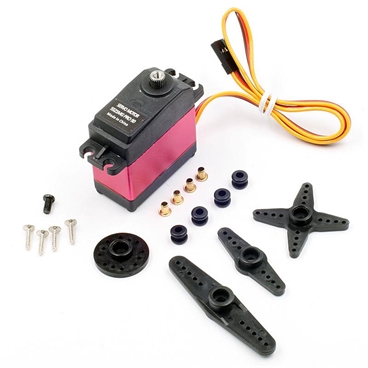

Package Contents:
1 x 20KG Digitital Servo
1 x Hardware Pack
4 x Plastic Arms
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 76.50
Std. Packing Qty. (pcs): 1
