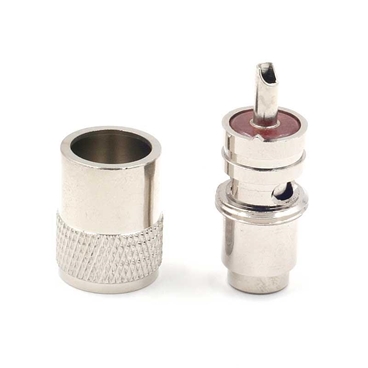

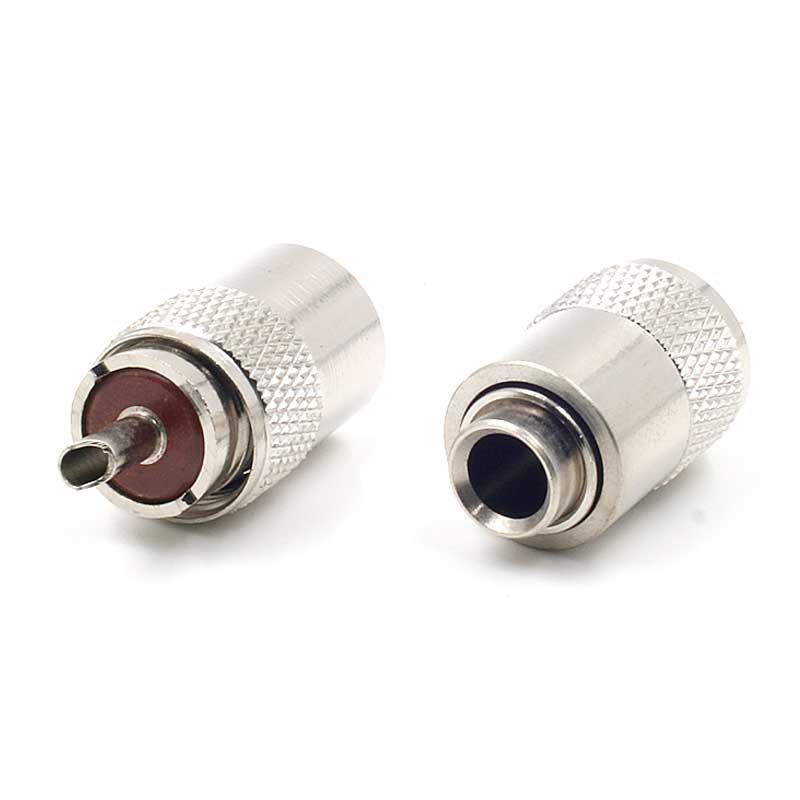

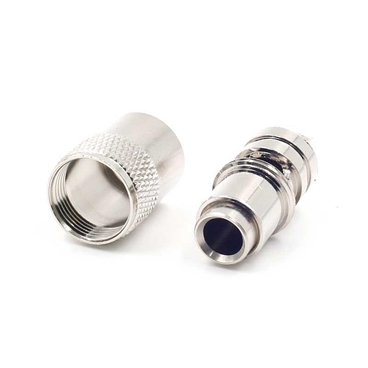

UHF PL259 Solder Connector Plug for RG8X RG-59 Coaxial Coax Cable

SKU: CON-CO-005

Customer #

MOQ: 100

Packaging: 100pcs/lot

Unit Price: RFQ

: Request Wholesale Prices

Payment Accepted

Bulk Order	Unit Price
<200	RFQ
200+	RFQ
500+	RFQ
1000+	RFQ

Buyer Protection

Full Refund if you don't receive your order
Full or Partial Refund, if the item is not as described

Suitable for Video Headend Applications.

Nickel-Plated machined brass construction and delrin insulator

High reliability, strong vibration resistance, good mechanical and electrical performance.

Radio equipment and instrument, and ground transmission system, which are widely used in the vibration and harsh environment, are widely used in radio frequency coaxial cable.

Impedance: 50 ohm

Compatible for: RF cable RG-8X RG-59

	VS
UHF PL259 Solder Connector Plug for RG8X RG-59 Coaxial Coax Cable		UHF/PL-259 Male Solder Coax Connector With Reducer for 50ohm Low Loss RG-58 RF Cable

Reference:

Type	Impedance	Core (mm)	Dielectric				Outside diameter		Shields	Remarks	Max. attenuation, 750 MHz
Type	(ohms)	Core (mm)	Type	(VF)	(in)	(mm)	(in)	(mm)	Shields	Remarks	(dB/100 ft)
RG-8/U	50	2.17	PE		0.285	7.2	0.405	10.3		Amateur radio; Thicknet (10BASE5) is similar	5.967[22]
RG-8X	50	1	PF	0.75	0.185	4.7	0.242	6.1	Double	A thinner version, with the electrical characteristics of RG-8U in a diameter similar to RG-6.[23]	10.946[22]
RG-9/U	51		PE				0.42	10.7
RG-11/U	75	1.63	PE	0.66-.85	0.285	7.2	0.412	10.5	Dual/triple/quad	Low loss at high frequency for cable and satellite television. Used for long drops and underground conduit, similar to RG7 but generally lower loss.^[24][25]	3.65
RG-56/U	48	1.4859					0.308	7.82	Dual braid shielded	Rated to 8000 volts, rubber dielectric
RG-58/U	50	0.81	PE	0.66	0.116	2.9	0.195	5	Single	Used for radiocommunication and amateur radio, thin Ethernet (10BASE2) and NIM electronics, Loss 1.056 dB/m @ 2.4 GHz. Common.^[26]	13.104[22]
RG-59/U	75	0.64	PE	0.66	0.146	3.7	0.242	6.1	Single	Used to carry baseband video in closed-circuit television, previously used for cable television. In general, it has poor shielding but will carry an HQ HD signal or video over short distances.^[27]	9.708[22]
RG-59A/U	75	0.762	PF	0.78	0.146	3.7	0.242	6.1	Single	Similar physical characteristics as RG-59 and RG-59/U, but with a higher velocity factor. 8.9@700 MHz	8.900[28]
